1:4 Blood Cardioplegia Fluid Delivery Set

Intended for the cooling and delivery of oxygenated blood and cardioplegia solution at a predetermined ratio.

•    Suitable for both cold single pass technique and warm reperfusion

•    Standard Ratio: 4:1

•    Double packaging for Coronary Adapter

Cooling Cardioplegia Fluid Delivery Set

•    Suitable for cold perfusion

•    Double crystalloid feeding line

•    Standard Male Luer Lock at table line end

Heat Exchangers

Plastic Tubing Heat Exchanger

§   Suitable for air and reservoir cooling

Metal Heat Exchanger

§   Suitable for air and reservoir cooling

§   Better heat transmission.

Metal Heat Exchanger

§   Suitable for water circulating

§   Includes Temperature Port and Bubble Trap

Extracorporeal Tubing Cardiac Connectors

Du-Kedem extracorporeal tubing connectors are constructed of crystal clear polycarbonate, allowing maximum visibility during de-bubbling procedures.

The connectors are available in a wide range of sizes and configuration.

Suction Control Valve - Non-Adjustable

Suction Control Valves are designed to maintain positive yet gentle suction and to ensure safety in the LV vent line during cardiopulmonary bypass operation. It is imperative to prevent air from entering the heart, should the pump be accidentally reversed.
The valve can be placed anywhere in the LV line preferably level with the heart.

Autotransfusion Kit

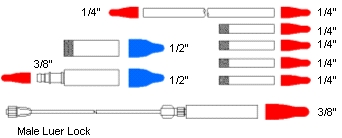

Plugs Kit for Cardiotomy Reservoir.

The Kit contains the necessary plugs intended to seal the Cardiotomy Reservoir during transportation, collect the patient blood, and empty the reservoir.

Gas / Oxygen Filter

Air and Gas Barrier Filter.

•    High particulate-loading capability to maintain flow rates over extended period

•    High flow rated at low differential pressures

•    Removes 0.3mic particles at 99.97% efficiency.

•    1/4” Connections

Applications:

•  Insufflation

•  Oxygen concentration

•  Nebulization

•  Oxygenation

•  Sterile delivery of gas
